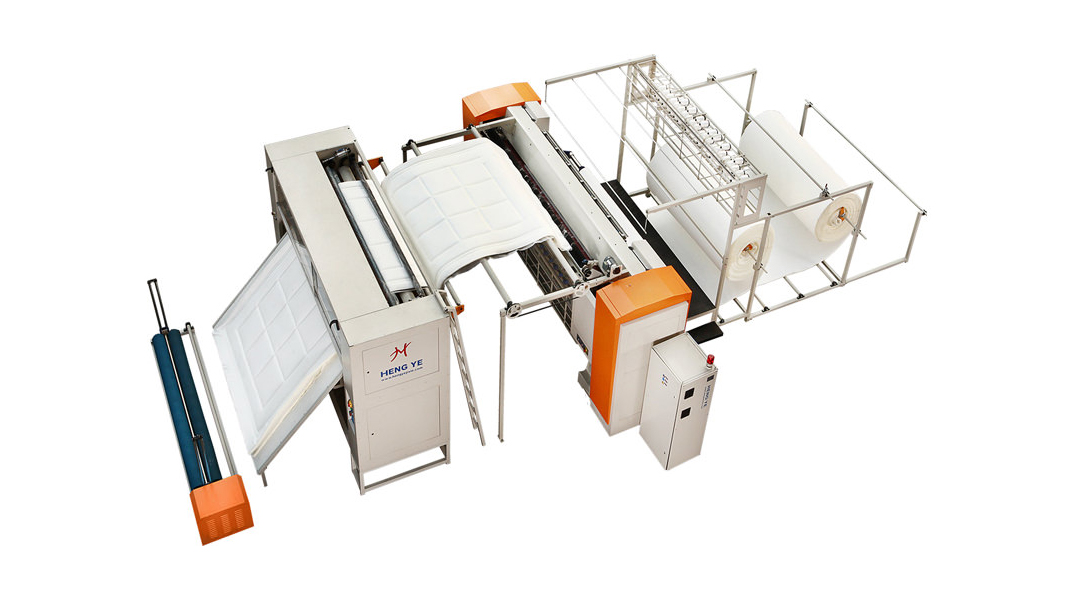

HY-W-DGN Computerized Shuttleless Multifunctional Quilting Machine
Drawing
Details
|
AdvantagesMechanical description and characteristics
|
|
Mainly used for various patterns on quilted high-end mattresses, bedding, home decoration and other products
1. On the basis of multi-needle quilting machine, it also has the function of single-needle quilting machine
2. It has higher output and more patterns than single needle quilting machine
3. The shuttleless quilting mechanism is adopted to avoid frequent replacement of the bottom thread, and the quilting stitches are more solid
4. The needle row and pressure plate adopt a cam-free double swing arm movement mechanism to avoid the occurrence of lubricating oil staining the fabric
5. Infrared detection of surface and bottom thread breaks, automatic shutdown, automatic needle lifting and CNC speed regulation
6. Pass the safety protection standard of CE certification
7. A new generation of computer control system, high quilting accuracy, no need to adjust the parameters or modify the pattern too much during the quilting process
8. Powerful pattern combination and multi-stride function, can quilt different patterns in each row in mattresses of various sizes
9. Check the status, the operation of the machine is clear at a glance
|
|
Specifications
|
|
Overall size (length, width and height)
|
4990x1650x2120
|
|
Sewing width
|
2450
|
|
Needle row pitch
|
76.2,76.2,152.4（6”）
|
|
Pitch
|
25.4
|
|
X stroke
|
535
|
|
Quilting thickness
|
≤60（所有圖案）
|
|
Step size
|
3-8
|
|
Production speed
|
60-230（米/小時(shí)）
|
|
Bur model
|
24/180、23/160、22/140、21/130
|
|
Spindle speed
|
200-900（轉(zhuǎn)/分鐘）
|
|
power
|
7KW
|
|
Voltage
|
380V/50HZ、220V/60HZ
|
|
Weight of the whole machine
|
5500kg
|
|
